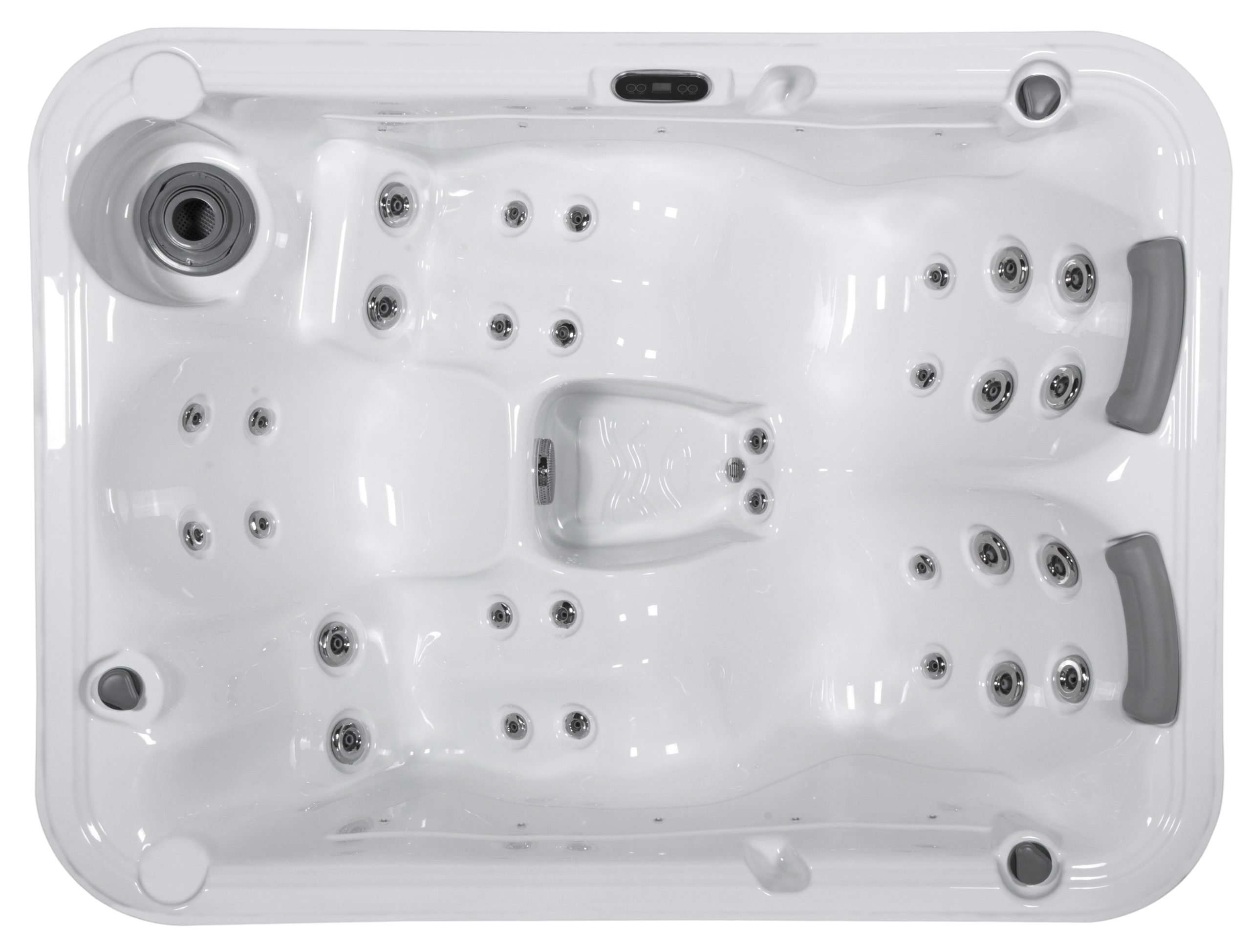

Wellis My Line Orion

Tandem Lounger

Spa Shell

Sterling Silver
Sterling Silver

Cabinet

Grey
Grey
Capacity up to 3 adults
30 Massage Jets
Lounger

Luxurius Comfort

MULTI-POINT MOOD LIGHTING

MULTI-POINT MOOD LIGHTING

Exclusive color therapy lighting is built into the sidewall of the hot tub, directly under the water surface, consisting of 10-20 LEDs that are aligned with the standard underwater lighting. Color therapy lighting is also installed along the rim and in the side panel of the hot tub, which can be controlled separately from the inner lighting.

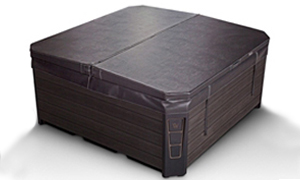

THERMAL COVER

THERMAL COVER

The thermal cover is designed to keep the heat of the spa at the set level, which can save you energy and money. Thermal insulation is provided by a special foam covered with stylish UV-resistant artificial leather.
RECLINING LOUNGER

RECLINING LOUNGER

The reclining lounger seat is designed for ultimate relaxation and a full-body massage experience. Sit back, recharge, and stay awhile with your head softly supported by the built-in headrest.

WPS Cabinet Frame

No more sanding, oiling, and messy maintenance of a traditional timber cabinet. Wellis spa cabinets are made of a UV-resistant polymer material, that looks as good as real wood but is entirely maintenance-free. Immortality for the spa cabinet’s frame! The special polymer ensures exceptional stability and life for the Spa’s structural frame – protecting and extending the life of your investment even further.

Water Purification

Ozone is a natural gas found in the atmosphere and simply consists of 3 oxygen atoms. The Ozone purification system of your Wellis spa injects ozone into the plumbing system where it is pre-mixed with circulating water to neutralize any bacteria, viruses, and other contaminants. The ozone then rapidly degrades into normal oxygen leaving your spa water sanitized and ready for your next soak.

Massage Jets

Wellis massage jets were designed to ensure an optimal hydro massage experience in any situation. Each jet type was carefully selected for the different pools to ensure hydro massages unique to each seat. The massage jets can be opened and closed individually, which allows concentrating hydro massage more precisely, to the specific part of the body.

Designed for Efficiency

Energy Efficient Water Circulation

Energy Efficient Water Circulation

The W-EC circulation pump is a very low power consumption (190W/h) device which is available for all Wellis hot tubs as an option. The low power consumption (40% lower energy costs than a typical circulation pump), long lifespan, and almost silent running make this a very green and cost-effective option to consider.

WPS Cabinet Frame

WPS Cabinet Frame

No more sanding, oiling, and messy maintenance of a traditional timber cabinet. Wellis spa cabinets are made of a UV-resistant polymer material, that looks as good as real wood but is entirely maintenance-free. Immortality for the spa cabinet’s frame! The special polymer ensures exceptional stability and life for the Spa’s structural frame – protecting and extending the life of your investment even further.

Thermal Cover

Thermal Cover

Wellis manufactures its own covers to ensure consistent quality and the highest level of thermal insulation effectiveness. This helps to keep your energy costs to a minimum. The covers include features like a full-length hinge buffer seal, internal vapor seal, and a marine-grade UV-resistant outer cover. The top surface slopes like a house roof so that rain can easily run off.
POLI-MAX™ HOT TUB SHELL REINFORCEMENT

POLI-MAX™ HOT TUB SHELL REINFORCEMENT

Increase the time you spend in your tub – without a hot water refill while also conserving energy. The Wellis shell reinforcement has excellent sound insulation properties and significantly reduces noise intensity through the tub wall – so the neighbors won’t be bothered if you feel like taking a refreshing massage in the middle of the night.

1. Acrilyc outer surface with antimicrobial treatment.
2. ABS polymer layer to further increase impact resistance and strength.
3. Medium density robotically applied polyurethane for added strength plus acoustic and thermal insulation.

REINFORCED MOLDED ABS FLOOR PAN

REINFORCED MOLDED ABS FLOOR PAN

The insulated one-piece molded floor pan forms the foundation upon which your spa rests. The pan sides extend upwards and form a moisture and insect-proof barrier to protect the spa’s structure from the detrimental effects of damp ground.
The reflective barrier insulation system extends across the floor pan to prevent valuable heat from being wasted.
POLYFOAM INSULATION

POLYFOAM INSULATION

Proper insulation is just as important for hot tubs as it is for residential houses. The inside of your Wellis spa cabinet – down to the floor and on the side walls – is covered with a thick layer of polyfoam insulation, while the shell is coated with several layers of polyurethane foam which is well known for its excellent insulation properties. The heat from the pumps and the heaters is reflected by the foam to the inside of the shell, heating the cabinet and the water. This unique and high-quality insulation type makes every Wellis hot tub extremely energy efficient, saving you a lot of money, and ensuring that your hot tub is operated in an environmentally friendly way.

Wellis

Relationship for a lifetime.

The My Line is a collection of hot tubs by Wellis that combines premium design with affordable value. Each hot tub features powerful pumps, plentiful jets, Ozone water purification, and LED lights. The included Wellis thermal cover provides the highest level of thermal insulation. Optional upgrades include the MyMusic 2.0 sound system, easy cover lifter, Scandinavian cold climate pack, and Wellis easy step.

SPECIFICATIONS

Standard Dimensions (WxLxH) 79 × 59 × 31 in
Seats 2 reclining, 1 sitting
Net Weight / Water Volume 551 lbs / 132 gallons
Frame WPS
Side Cover HorizontSide™ UV-proof wood textured
Reinforcement Polyurethane
Insulation Polyfoam
Power Requirement 120V 60Hz 12A
Filtration 1 Superfine Paper Filter
Heater 1 kW
Pumps 1 x 1.5 HP double speed

Water Sanitization Ozone
Drains 1 piece
Control Box Gecko (IN.YJ-2)
Control Panel Easy 4 (K-300)
Jet Count 30
LED Lights 10 pcs LED
Headrests 2 pcs
MyMusic™ Sound System Optional
Thermo Cover Yes
Easy Cover Lifter Optional
Wellis Easy Step Optional

WARRANTY & USER GUIDE
